Introduction

My employer Best Software Consultants B.V. organized a demonstration from LiquidWare about their product ProfileUnity. After that, I was enthusiastic about Profile Unity that I decided to give it more attention. So, I installed it on my lab environment and tested it thoroughly.

In this blog article, I will describe all the steps to install and configure ProfileUnity on a domain environment.

Technical background

About Profile Unity a copy-and-paste from the LiquidWare website: "ProfileUnity provides policy, profile and security management enabling portability across all Windows OS workspaces as well as physical, RDS, virtual and cloud." To deliver applications to the end-user, FlexApp is used. In short: during the logon process virtual disks with the application are mounted.

Preparation installation ProfileUnity

Profile Unity takes care of delivering the applications to the end-user. I installed Profile Unity on my SCCM server. And I used the ProfileUnity web interface to administer ProfileUnity from my domain controller. My domain controller is my management server...

ProfileUnity stores all the files on a folder on the NETLOGON share. That is a good solution as it reduces network traffic. However, I decided to install all the files on a dedicated share, called ProfileUnity. The share- and NTFS-rights:

ProfileUnity Share Permissions

Share permissions

ProfileUnity NTFS permissions

NTFS permissions. I added Domain Computers so each computer can install the agent during the boot process.

Installation Profile Unity

As mentioned earlier, these steps have been done on my SCCM server.

Start the installation via the executable ProfileUnity-Net_6.8.4_G4.exe.

Select English

Select the language you want to use during the installation phase. In this case English. Click [Ok].

Click Next

Click [Next]

Click [Next] to install the required applications.

Click [Next] to install the required applications.

Click [Next]

Click [Next]

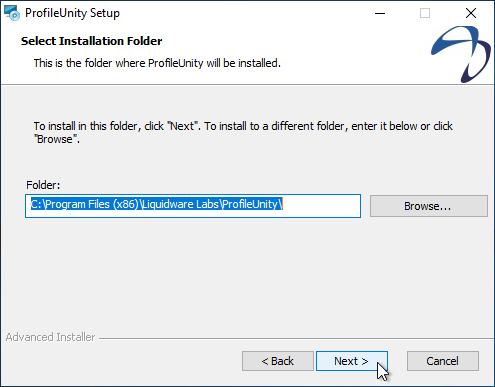

Accept the default path and click [Next].

Accept the default path and click [Next].

Enter the details and click [Next].

Enter the details and click [Next].

I have selected 'Other' as I am using HyperV. And I will use the logoff script to make sure all the user settings are stored.

I have selected 'Other' as I am using HyperV. And I will use the logoff script to make sure all the user settings are stored.

Read the EULA carefully. Select 'I accept the terms in the License Agreement' and click [Next].

Read the EULA carefully. Select 'I accept the terms in the License Agreement' and click [Next].

Click [Install] to start the actual installation.

Click [Install] to start the actual installation.

Click [Finish] after the installation.

Click [Finish] after the installation.

Configuration

During the configuration phase, the following is set:

  • Default share for the files
  • Setting up the default configuration
  • Configuring settings via group policy objects

Configuration - default share

After a successful installation, you are prompted to fill in the following details:

\\demo-sccm\ProfileUnity

The share \\demo-sccm\ProfileUnity has been created earlier.

Configuration - set up the default configuration

Now, configuring ProfileUnity. Before we start, we have to create the location where ProfileUnity stores the user settings. In this scenario I created the share ProfileUnityUserSettings:

Share permissions.

Share permissions.

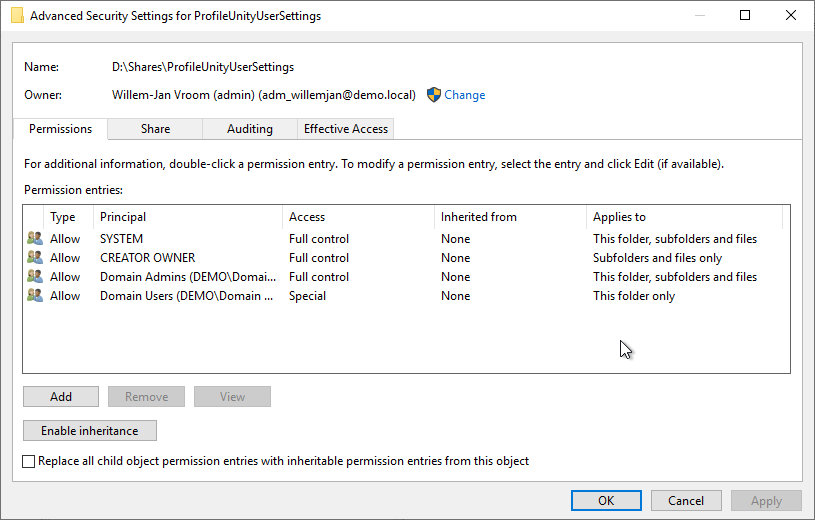

NTFS Permissions.

NTFS Permissions

Special NTFS permissions.

Special NTFS permissions for Domain Users.



Login to the web interface. Click left on [Configuration Management]. After that, click [Create] on the upper right corner.

Login to the web interface. Click left on [Configuration Management]. After that, click [Create] on the upper right corner.

Click [Guided]

Click [Guided]

I selected [Windows 7, 1, 2016 or 2019 as a Desktop and 2016 & 2019 RDS Full Desktop].

I selected [Windows 7, 1, 2016 or 2019 as a Desktop and 2016 & 2019 RDS Full Desktop].

Click [Next]

Click [Next]

Specify where the user settings should be stored. The share ProfileUnityUserSettings has been created earlier.

Specify where the user settings should be stored. The share ProfileUnityUserSettings has been created earlier.

Skip the GPO Integration. It is done later manually. The advantage of doing it manually is that you are more in control. Thus click [Next]

Skip the GPO Integration. It is done later manually. The advantage of doing it manually is that you are more in control. Thus click [Next]

Click [Yes] to continue.

Click [Yes] to continue.

Click [Download or Deploy Configuration].

Click [Download or Deploy Configuration]. The ProfileUnity share is filled with all the needed files.

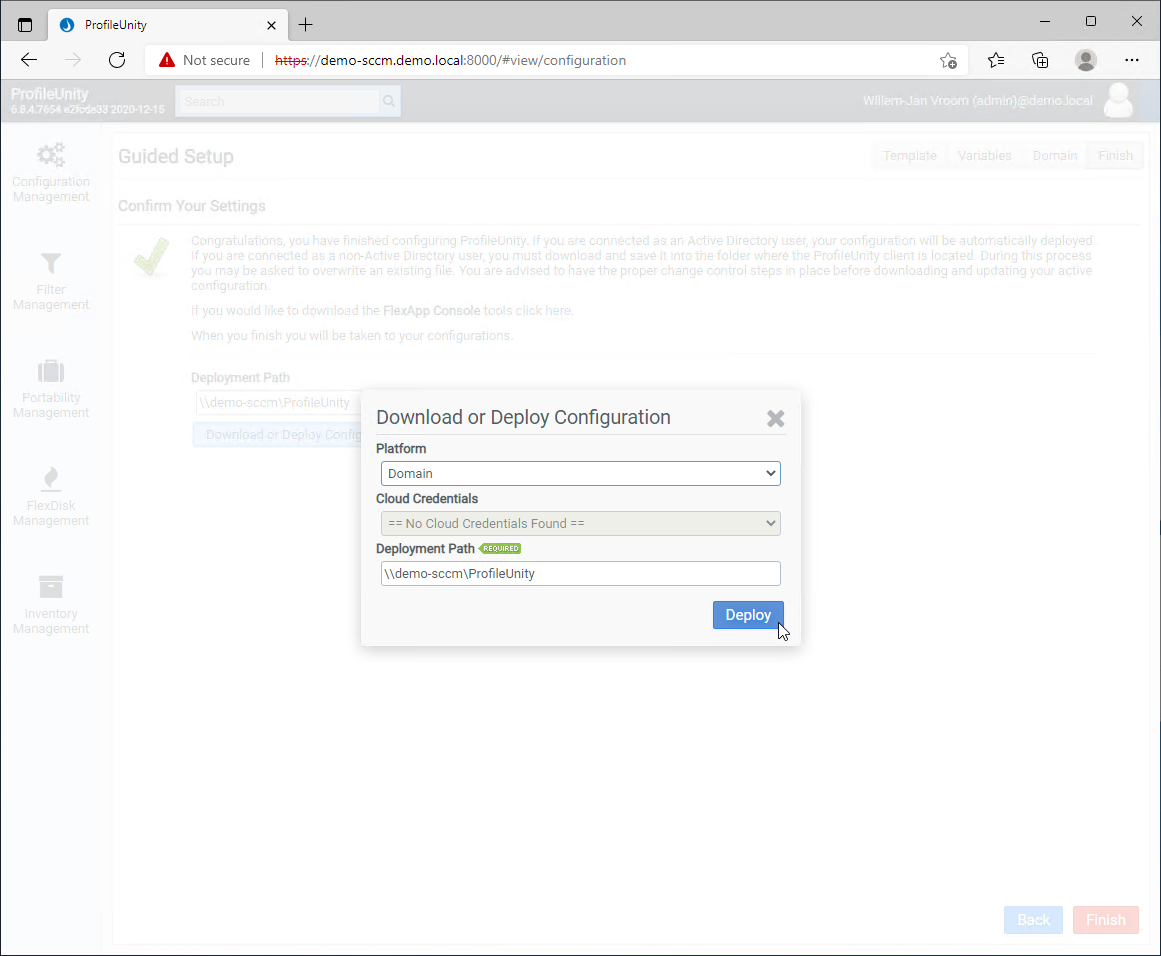

Click [Deploy]

Click [Deploy]

Click [Download or Deploy Client Tools]

Click [Download or Deploy Client Tools]

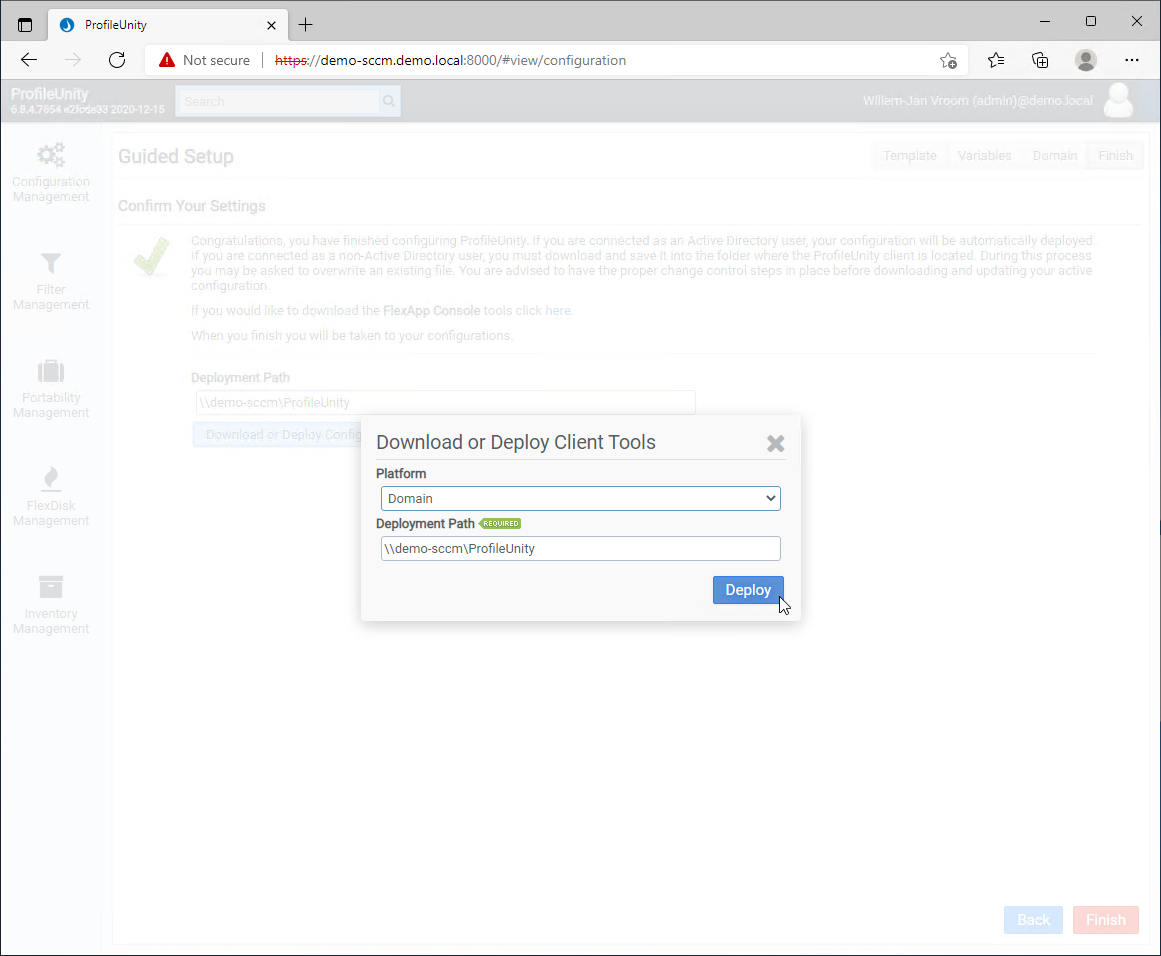

Click [Deploy].

Click [Deploy].

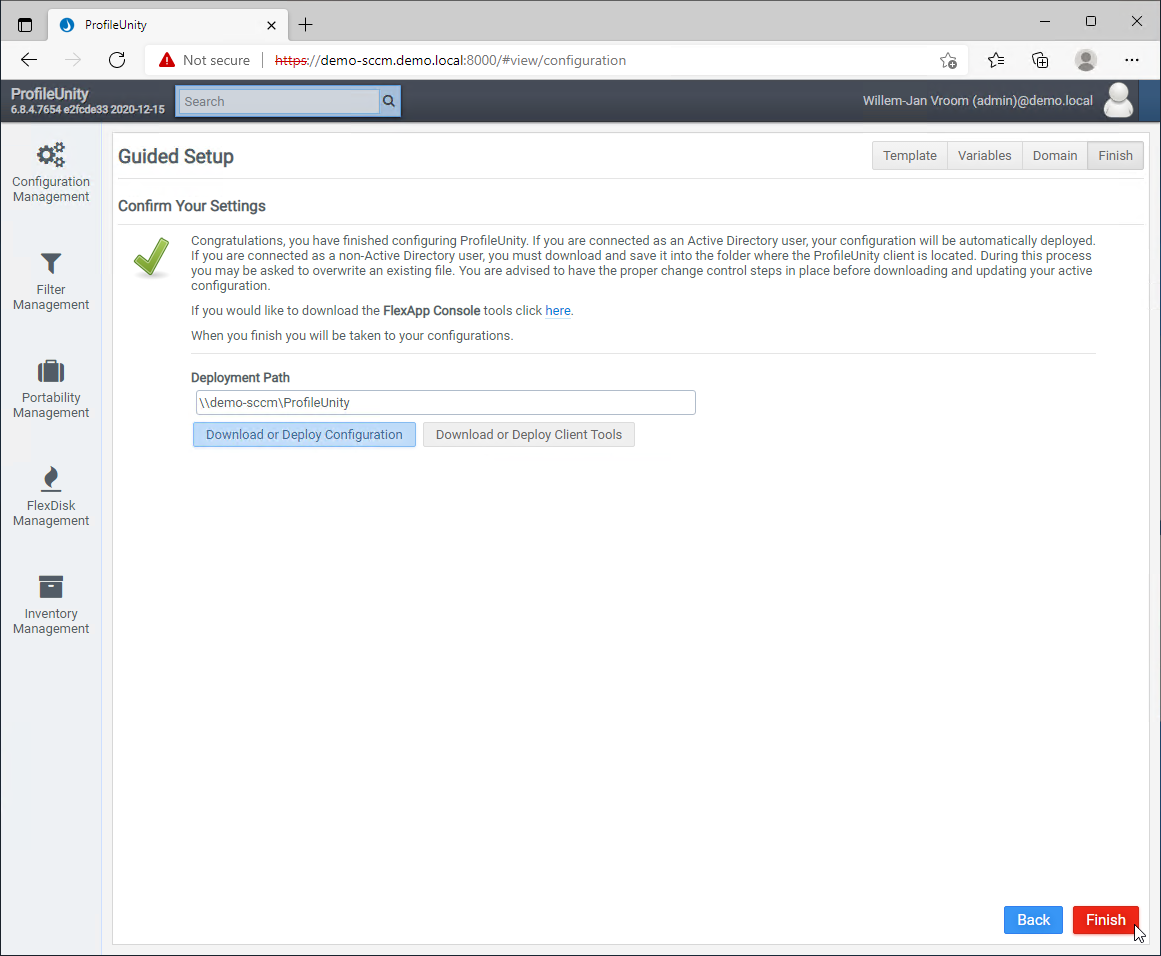

Click [Finish]

Click [Finish]

The end result.

The end result. Click on the line.

And you see the default configuration.

And you see the default configuration.

Configuration - group policy objects

Now, the final part. We want to configure the following for the domain-joined computers and domain-joined users:

  • Domain joined computers:
    • Script to install the client during the startup process
    • Configure the paths to be used
  • Domain joined users:
    • Enable ProfileUnity
    • Configure some paths to be used
    • Silent or not?

Configuration - Domain joined computers

Start Group Policy Management Console and create the group policy object Computer - ProfileUnityStartupScript:

Start Group Policy Management Console.

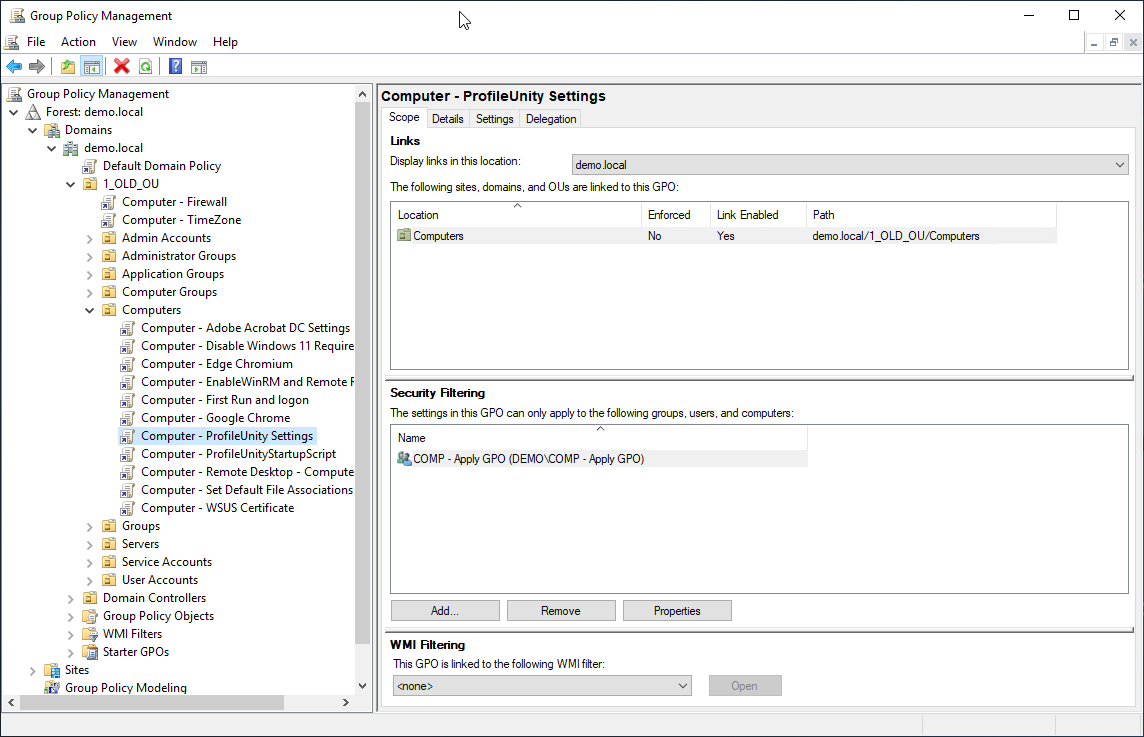

 Create the group policy object Computer - ProfileUnity Settings:

Create the group policy object Computer - ProfileUnity Settings.

Startup script.

Select the group policy object Computer - ProfileUnityStartupScript and set the name of the startup script. This script is run when the computer starts up.

Select the group policy object Computer - ProfileUnity Settings. The following settings are set via an administrative template. Therefore, load the administrative template.

Click [Add]

Click [Add]

Select the .adm file from the ProfileUnity share and click [Open].

Select the .adm file from the ProfileUnity share and click [Open].

Click [Close] to add the template.

Click [Close] to add the template.

These settings can be configured:

These settings can be configured.

And a detailed overview of the settings.

And a detailed overview of the settings.

Configuration - Domain joined users

Start Group Policy Management Console and create the group policy object User - ProfileUnityLogoff Script:

Start Group Policy Management Console.

Create the group policy object User - ProfileUnity Settings:

Create the group policy object User - ProfileUnity Settings.

Select the group policy object User - ProfileUnityLogoff Script and set the name of the logoff script. This script is run when the user logs off.

Select the group policy object User - ProfileUnityLogoff Script and set the name of the logoff script. This script is run when the user logs off.

And the name of the logoff script.

And the name of the logoff script.

Select the group policy object User - ProfileUnity Settings and configure the above-mentioned settings accordingly.

Select the group policy object User - ProfileUnity Settings and configure the above-mentioned settings accordingly. Add the .adm file if needed.

Testing on a client

And now, testing on a client. We should see a Profile Unity progress bar when a user logs on:

Testing on a client.

And that is exactly what we need as we do not have any applications available now.

In the article ProfileUnity from Liquidware: deployment of a predefined application Firefox the steps to install a predefined application is mentioned.
